Technical data: HBAC-U-R
This sensor must be installed in the suction line and this type should only be used if it is impossible to install the normal HBAC-U directly in liquid ammonia. The sensor will react when the suction line is partly filled with ammonium carbamate. The sensor must be installed like a rod style vapor quality sensor.
HBAC-U-R is used for detecting leakage in cascade systems. The sensor triggers an alarm if there is an CO2 leak in the NH3 part. A leak results in several hours of cleaning the pipes and heat exchanger. If a CO2 leak occurs in the NH3 part, salt crystals are formed. These salt crystals are very corrosive and lead to clogging of the parts. If the leak is not stopped in time, it can lead to extensive damage to the heat exchanger, pipes, and pump.
Product features
- CO2 leakage detection in NH3 in suction line
- Can be used in DX systems
- LED indication for power and alarm status
- Split design which makes it easy to install and perform diagnostics on
- Single Shared design that makes it easy to install and diagnostics
Application
Specification

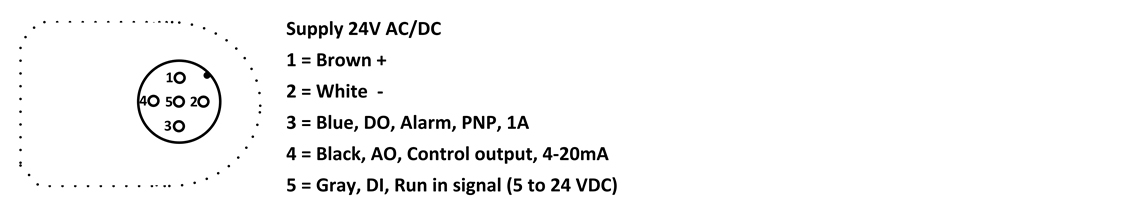

Conneticon Diagram
* Pin 1 & 2: 24 V AC/DC. Pin 2 & 3: Alarm output. Pin 2 & 4: analogue output (data logging). Pin 2 & 5: Activation of sensor functionality.
| Power supply | Environmental conditions | ||
| Voltage | 24 V AC/DC + 10% | Ambient temperature | -30...+50°C |
| Max. current consumption | 600 mA | Max pressure | 100 bar |
| Plug connection | M12 - DIN 0627 | Protection degree | IP65 |
| Output | Vibrations | IEC 60068-2-6 (4g) | |
| Transsistor output | PNP, 1 A | Mechanical specifications | |
| Contact function | NC or NO | Thread connection | 3/4” |
| Approvals | Material - liquid parts | AISI 304 / PTFE | |
| EMC test | EN 61000-2 | Materiale - electronic parts | Nylon 6 (PA) |
Ordering Code
| Output | Length | Connection | Ordering code |
|---|---|---|---|
| NO | 150 mm | 3/4" NPT | HBAC-U-R-1.5-NO-2 |
| NC | 150 mm | 3/4" NPT | HBAC-U-R-1.5-NC-2 |
| NO | 150 mm | 3/4" BSPP | HBAC-U-R-1.5-NO-6 |
| NC | 150 mm | 3/4" BSPP | HBAC-U-R-1.5-NC-6 |
| NO | 300 mm | 1" BSPP | HBAC-U-R-3.0-NO-8 |
| NC | 300 mm | 1" BSPP | HBAC-U-R-3.0-NC-8 |
| NO | 300 mm | 1" NPT | HBAC-U-R-3.0-NO-9 |
| NC | 300 mm | 1" NPT | HBAC-U-R-3.0-NC-9 |
| Electronic Part for HBAC-U-R-NO | HBAC-U-R-EL-NO | ||
| Electronic Part for HBAC-U-R-NC | HBAC-U-R-EL-NC |
