Technical data: HBSO1-LT & HBSO2-LT
HBSO1-LT and HBSO2-LT are low temperature level switches used for detecting common lubricating oils in refrigeration systems. The switches are specially developed for low temperature applications. The HBSO1 versions are used for PAO, and mineral oil. The HBSO2 versions are used for PAG and POE oil.
Typically, it is installed in / on the compressor and the oil separator, but it is also suited for installation in other locations in the oil system. The sensor’s measurement principle makes it unique for these purposes, since the properties of the measurement principle allows it, among other things, to detect oil without detecting refrigerant. It is calibrated so that it is unaffected by oil spray and only allows a small amount of foam.
The electronic sensor head is the same as the one used for the regular HBSO1 and HBSO2 sensors. The mechanical part has got a special open design made for draining the stiff and sticky oil at low temperatures on the low-pressure side of a cooling plant.
Product features
- Proven and reliable sensor with NPN/PNP transistor output and NO/NC contact function.
The NO/NC term refers to the state of the contact in "dry" condition, when not influenced by the oil. - The switch is special developed for low temperature applications.
- Oil temperature range -30°...+90°C.
- The mechanical part is made with a special open design for draining the stiff & sticky oil at low temperatures.
- Proven and reliable sensor with NPN/PNP transistor output and NO/NC contact function.
The NO/NC term refers to the state of the contact in "dry" condition, when not influenced by the oil. - Split design which makes it easy to install and make diagnostic. The electronic part can easily be disassembled by 2 screws.
- Designed for the industrial refrigeration industry - max pressure up to 150 bar.
- Clear LED indication.

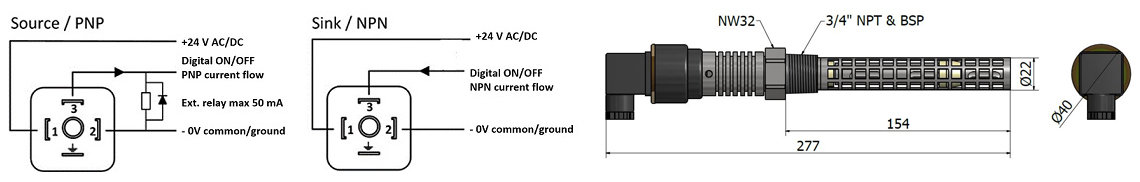

Specification
| Power supply | Mechanical specifications | ||
| Voltage | 24 V AC/DC + 10% | Thread connection | 3/4” NPT & 3/4" BSPP |
| Max current consumption | Max 200 mA | Material (liquid parts) | AISI 304 / PTFE |
| Plug connection | DIN 43650 | Material (electronic parts) | Nylon 6 (PA) |
| Environmental conditions | Approvals | ||
| Ambient temperature | -30°...+50°C | EMC test | EN 61000-2 |
| Oil temperature | -30°...+90°C | Indication | |
| Max pressure | 150 bar | LED indication | 4 x red |
| Protection degree | IP65 | Output | |
| Vibrations | IEC 60068-2-6 (4g) | Transistor output | PNP or NPN |
| Contact function | NC or NO | ||
Ordering Code
| Output | Thread type | Ordering code |
|---|---|---|
| W. set screw connection - IP54 | ||
| PNP / NO | 3/4" NPT | HBSO1-PNP/NO-2-LT |
| PNP / NC | 3/4" NPT | HBSO1-PNP/NC-2-LT |
| NPN / NO | 3/4" NPT | HBSO1-NPN/NO-2-LT |
| NPN / NC | 3/4" NPT | HBSO1-NPN/NC-2-LT |
| PNP / NO | 3/4" BSPP | HBSO1-PNP/NO-6-LT |
| PNP / NC | 3/4" BSPP | HBSO1-PNP/NC-6-LT |
| NPN / NO | 3/4" BSPP | HBSO1-NPN/NO-6-LT |
| NPN / NC | 3/4" BSPP | HBSO1-NPN/NC-6-LT |
| Spare parts for HBSO1-LT | ||
| Electronic part for HBSO1-PNP/NO-LT | HBSO1-PNP/NO-EL-LT | |
| Electronic part for HBSO1-PNP/NC-LT | HBSO1-PNP/NC-EL-LT | |
| Electronic part for HBSO1-NPN/NO-LT | HBSO1-NPN/NO-EL-LT | |
| Electronic part for HBSO1-NPN/NC-LT | HBSO1-NPN/NC-EL-LT | |
| PNP / NO | 3/4" NPT | HBSO2-PNP/NO-2-LT |
| PNP / NC | 3/4" NPT | HBSO2-PNP/NC-2-LT |
| NPN / NO | 3/4" NPT | HBSO2-NPN/NO-2-LT |
| NPN / NC | 3/4" NPT | HBSO2-NPN/NC-2-LT |
| PNP / NO | 3/4" BSPP | HBSO2-PNP/NO-6-LT |
| PNP / NC | 3/4" BSPP | HBSO2-PNP/NC-6-LT |
| NPN / NO | 3/4" BSPP | HBSO2-NPN/NO-6-LT |
| NPN / NC | 3/4" BSPP | HBSO2-NPN/NC-6-LT |
| Spare parts for HBSO2-LT | ||
| Electronic part for HBSO2-PNP/NO-LT | HBSO2-PNP/NO-EL-LT | |
| Electronic part for HBSO2-PNP/NC-LT | HBSO2-PNP/NC-EL-LT | |
| Electronic part for HBSO2-NPN/NO-LT | HBSO2-NPN/NO-EL-LT | |
| Electronic part for HBSO2-NPN/NC-LT | HBSO2-NPN/NC-EL-LT | |
| W. union connection - IP66 | ||
| PNP / NO | 3/4" NPT | HBSO1-U-PNP/NO-2-LT |
| PNP / NC | 3/4" NPT | HBSO1-U-PNP/NC-2-LT |
| NPN / NO | 3/4" NPT | HBSO1-U-NPN/NO-2-LT |
| NPN / NC | 3/4" NPT | HBSO1-U-NPN/NC-2-LT |
| PNP / NO | 3/4" BSPP | HBSO1-U-PNP/NO-6-LT |
| PNP / NC | 3/4" BSPP | HBSO1-U-PNP/NC-6-LT |
| NPN / NO | 3/4" BSPP | HBSO1-U-NPN/NO-6-LT |
| NPN / NC | 3/4" BSPP | HBSO1-U-NPN/NC-6-LT |
| Spare parts for HBSO1-U-LT | ||
| Electronic part for HBSO1-U-PNP/NO-LT | HBSO1-U-PNP/NO-EL-LT | |
| Electronic part for HBSO1-U-PNP/NC-LT | HBSO1-U-PNP/NC-EL-LT | |
| Electronic part for HBSO1-U-NPN/NO-LT | HBSO1-U-NPN/NO-EL-LT | |
| Electronic part for HBSO1-U-NPN/NC-LT | HBSO1-U-NPN/NC-EL-LT | |
| PNP / NO | 3/4" NPT | HBSO2-U-PNP/NO-2-LT |
| PNP / NC | 3/4" NPT | HBSO2-U-PNP/NC-2-LT |
| NPN / NO | 3/4" NPT | HBSO2-U-NPN/NO-2-LT |
| NPN / NC | 3/4" NPT | HBSO2-U-NPN/NC-2-LT |
| PNP / NO | 3/4" BSPP | HBSO2-U-PNP/NO-6-LT |
| PNP / NC | 3/4" BSPP | HBSO2-U-PNP/NC-6-LT |
| NPN / NO | 3/4" BSPP | HBSO2-U-NPN/NO-6-LT |
| NPN / NC | 3/4" BSPP | HBSO2-U-NPN/NC-6-LT |
| Spare parts for HBSO2-U-LT | ||
| Electronic part for HBSO2-U-PNP/NO-LT | HBSO2-U-PNP/NO-EL-LT | |
| Electronic part for HBSO2-U-PNP/NC-LT | HBSO2-U-PNP/NC-EL-LT | |
| Electronic part for HBSO2-U-NPN/NO-LT | HBSO2-U-NPN/NO-EL-LT | |
| Electronic part for HBSO2-U-NPN/NC-LT | HBSO2-U-NPN/NC-EL-LT |
