Technical data: HBS/ADAP/xxx
HB products has different thread adaptors on stock. The product range covers adaptors for 1”, 1½” NPT and BSPP and 1-1/8” UNEF down to ¾”.
Please note especially the 1-1/8” UNEF to ¾” does not comply with all our switches. All low temperature oil switches HBSO-LT and the switches HBSR/HBOR will either not fit or not work properly. Please ask for guidance.
Adaptors for smaller threads like ½” where you like to install a ¾” switch might work but the functionality can be affected by long narrow corridor - please ask for guidance.
Product Feature
- For mounting on 1 1/8" UNEF, 1" NPT, 1" BSPP or 1 1/2" BSPP threads
- Made in stainless steel – AISI 303

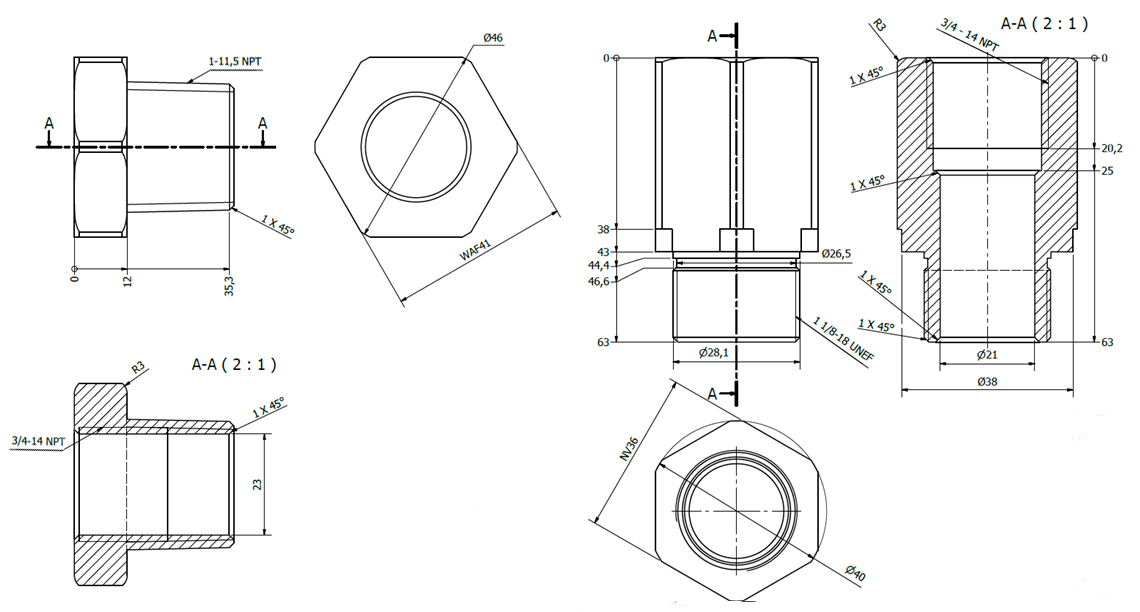

Specification Drawing
HBS/ADAP/7/2
Mechanical Specification : Material AISI303
Ordering Code
| Thread type | Ordering code |
|---|---|
| 1 1/8 UNEF - 3/4" NPT | HBS/ADAP/7/2 |
| 1" BSP - 3/4" NPT | HBS/ADAP/8/2 |
| 1" BSP - 3/4" BSP | HBS/ADAP/8/6 |
| 1" NPT - 3/4" NPT | HBS/ADAP/9/2 |
| 1 1/2" BSP - 3/4" BSP | HBS/ADAP/11/6 |
| 1 1/2" BSP - 1" BSP | HBS/ADAP/11/8 |
